Product Details:
|
| Raw Material: | 95%-99% Alumina Ceramic | Color: | White |
|---|---|---|---|
| Usage: | Industry Usage | Size: | Customer's Drawing |
| Keywords: | Al2o3 Alumina Ceramic Parts | Package: | Carton |
| MOQ: | 1-10Pcs | Working Temperature: | 800 |
| Feature: | High Hardness | Advantage: | Longer Life |

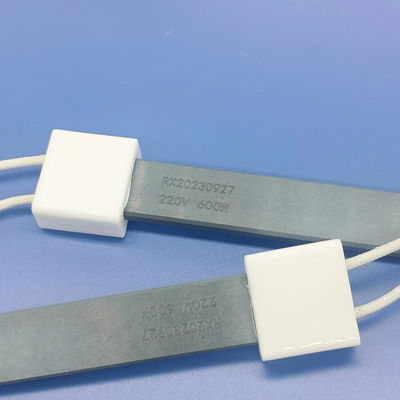

Product name: Alumina ceramic heater (Al2O3 heater)
Application: In the industrial field, Industry Ceramic heaters are widely used as high-temperature heating equipment in semiconductor manufacturing, petrochemical industry, medical devices and other production processes. Industry ceramic heaters are also widely used in various household appliances. Industry ceramic heaters also play an important role in automobile manufacturing, aerospace and other industries.
Technical parameters:
| Volts d.c. | 12-36V |
| Resistance value | 40-70Ω/150Ω |
| Power | 45-180 W |
| Usage temperature | 1050℃--1480℃ |
| We product it as customers need . | |
Performance characteristics of ceramic heating sheet:
Insulation electrical strength: 2500V, 50Hz at room temperature, without breakdown for 1 minute;
High temperature resistance, dry point up to 1200℃
The surface load is high, and the dry point heating load can reach 25w/cm2.
Small size and light weight.
Acid and alkali corrosion resistance
Small thermal inertia and fast heating speed.
Excellent thermal performance, fast heating speed, and the surface temperature rises to 1100℃ within 15 seconds.
Excellent electrical insulation performance.
Using high-performance silicon nitride as matrix material, it has excellent oxidation resistance and long service life, and can be turned on and off for 100,000 times.
